Know the computers that are connected to my network.

Leer en espanol
February 1, 2012 Cybersecurity Linux & Systems rokitoh
Know the computers that are connected to my network.

Table of contents

nmap Nmap is an open source program that is used to perform port tracing written originally. ===

There will be several tools that allow us to know the reachable devices on our local network.

nmap

nmap it's a program open source which is used to carry out port sniffing originally written by Gordon Lyon (better known by his alias Fyodor Vaskovich). It is used to evaluate the security of computer systems, as well as to discover services or servers on a computer network.

Bash
rokitoh@red-orbita:~$ nmap -sP 192.168.1.1/24
Starting Nmap 5.00 ( http://nmap.org ) at 2011-08-30 14:03 CEST

Host 192.168.1.1 is up (0.00058s latency).

Host 192.168.1.102 is up (0.00025s latency).

Nmap done: 256 IP addresses (2 hosts up) scanned in 2.54 seconds

Web oficial: http://nmap.org/

fping

Instalación para debina o derivados.

Bash
rokitoh@red-orbita:~$ apt-get install  fping

Fping es una herramienta que te permite enumerar una red en poco tiempo, y especificar en un rango de red determinadocuales son las ip que están activasdentro de ese rango.

Bash
rokitoh@red-orbita:~$ fping -g 192.168.1.1/24 2> /dev/null | grep alive

192.168.1.1 is alive

192.168.1.102 is alive

ip neig

IP protocol configuration tool.  With it we can see and modify routes.

Bash
rokitoh@red-orbita:~$ ip neig

192.168.1.68 dev eth0 FAILED

192.168.1.56 dev eth0 FAILED

192.168.1.6 dev eth0 FAILED

192.168.1.26 dev eth0 FAILED

192.168.1.101 dev eth0 FAILED

192.168.1.170 dev eth0 FAILED

192.168.1.213 dev eth0 FAILED

192.168.1.7 dev eth0 FAILED

192.168.1.214 dev eth0 FAILED

192.168.1.30 dev eth0 FAILED

192.168.1.210 dev eth0 FAILED

192.168.1.161 dev eth0 FAILED

192.168.1.41 dev eth0 FAILED

192.168.1.253 dev eth0 FAILED

192.168.1.218 dev eth0 FAILED

192.168.1.187 dev eth0 FAILED

192.168.1.254 dev eth0 FAILED

192.168.1.154 dev eth0 FAILED

192.168.1.118 dev eth0 FAILED

192.168.1.88 dev eth0 FAILED

192.168.1.28 dev eth0 FAILED

192.168.1.33 dev eth0 FAILED

192.168.1.100 dev eth0 FAILED

192.168.1.198 dev eth0 FAILED

192.168.1.226 dev eth0 FAILED

192.168.1.137 dev eth0 FAILED

192.168.1.232 dev eth0 FAILED

192.168.1.189 dev eth0 FAILED

192.168.1.233 dev eth0 FAILED

192.168.1.175 dev eth0 FAILED

192.168.1.19 dev eth0 FAILED

192.168.1.195 dev eth0 FAILED

192.168.1.169 dev eth0 FAILED

192.168.1.249 dev eth0 FAILED

192.168.1.111 dev eth0 FAILED

192.168.1.223 dev eth0 FAILED

192.168.1.59 dev eth0 FAILED

192.168.1.199 dev eth0 FAILED

192.168.1.221 dev eth0 FAILED

192.168.1.52 dev eth0 FAILED

192.168.1.82 dev eth0 FAILED

192.168.1.124 dev eth0 FAILED

192.168.1.2 dev eth0 FAILED

192.168.1.129 dev eth0 FAILED

192.168.1.239 dev eth0 FAILED

192.168.1.193 dev eth0 FAILED

192.168.1.174 dev eth0 FAILED

192.168.1.67 dev eth0 FAILED

192.168.1.222 dev eth0 FAILED

192.168.1.34 dev eth0 FAILED

192.168.1.29 dev eth0 FAILED

192.168.1.248 dev eth0 FAILED

192.168.1.43 dev eth0 FAILED

192.168.1.130 dev eth0 FAILED

192.168.1.132 dev eth0 FAILED

192.168.1.225 dev eth0 FAILED

192.168.1.122 dev eth0 FAILED

192.168.1.40 dev eth0 FAILED

192.168.1.188 dev eth0 FAILED

192.168.1.15 dev eth0 FAILED

192.168.1.45 dev eth0 FAILED

192.168.1.201 dev eth0 FAILED

192.168.1.46 dev eth0 FAILED

192.168.1.237 dev eth0 FAILED

192.168.1.66 dev eth0 FAILED

192.168.1.120 dev eth0 FAILED

192.168.1.230 dev eth0 FAILED

192.168.1.252 dev eth0 FAILED

192.168.1.159 dev eth0 FAILED

192.168.1.54 dev eth0 FAILED

192.168.1.73 dev eth0 FAILED

192.168.1.229 dev eth0 FAILED

192.168.1.139 dev eth0 FAILED

192.168.1.216 dev eth0 FAILED

192.168.1.202 dev eth0 FAILED

192.168.1.87 dev eth0 FAILED

192.168.1.136 dev eth0 FAILED

192.168.1.177 dev eth0 FAILED

192.168.1.134 dev eth0 FAILED

192.168.1.96 dev eth0 FAILED

192.168.1.125 dev eth0 FAILED

192.168.1.191 dev eth0 FAILED

192.168.1.238 dev eth0 FAILED

192.168.1.93 dev eth0 FAILED

192.168.1.212 dev eth0 FAILED

192.168.1.121 dev eth0 FAILED

192.168.1.182 dev eth0 FAILED

192.168.1.138 dev eth0 FAILED

192.168.1.192 dev eth0 FAILED

192.168.1.227 dev eth0 FAILED

192.168.1.99 dev eth0 FAILED

192.168.1.194 dev eth0 FAILED

192.168.1.231 dev eth0 FAILED

192.168.1.144 dev eth0 FAILED

192.168.1.157 dev eth0 FAILED

192.168.1.4 dev eth0 FAILED

192.168.1.115 dev eth0 FAILED

192.168.1.39 dev eth0 FAILED

192.168.1.135 dev eth0 FAILED

192.168.1.91 dev eth0 FAILED

192.168.1.74 dev eth0 FAILED

192.168.1.242 dev eth0 FAILED

192.168.1.114 dev eth0 FAILED

192.168.1.70 dev eth0 FAILED

192.168.1.21 dev eth0 FAILED

192.168.1.65 dev eth0 FAILED

192.168.1.246 dev eth0 FAILED

192.168.1.49 dev eth0 FAILED

192.168.1.211 dev eth0 FAILED

192.168.1.60 dev eth0 FAILED

192.168.1.112 dev eth0 FAILED

192.168.1.149 dev eth0 FAILED

192.168.1.18 dev eth0 FAILED

192.168.1.83 dev eth0 FAILED

192.168.1.64 dev eth0 FAILED

192.168.1.156 dev eth0 FAILED

192.168.1.240 dev eth0 FAILED

192.168.1.176 dev eth0 FAILED

192.168.1.119 dev eth0 FAILED

192.168.1.168 dev eth0 FAILED

192.168.1.58 dev eth0 FAILED

192.168.1.127 dev eth0 FAILED

192.168.1.81 dev eth0 FAILED

192.168.1.146 dev eth0 FAILED

192.168.1.86 dev eth0 FAILED

192.168.1.141 dev eth0 FAILED

192.168.1.228 dev eth0 FAILED

192.168.1.94 dev eth0 FAILED

192.168.1.11 dev eth0 FAILED

192.168.1.108 dev eth0 FAILED

192.168.1.61 dev eth0 FAILED

192.168.1.103 dev eth0 FAILED

192.168.1.25 dev eth0 FAILED

192.168.1.250 dev eth0 FAILED

192.168.1.166 dev eth0 FAILED

192.168.1.147 dev eth0 FAILED

192.168.1.97 dev eth0 FAILED

192.168.1.245 dev eth0 FAILED

192.168.1.234 dev eth0 FAILED

192.168.1.77 dev eth0 FAILED

192.168.1.126 dev eth0 FAILED

192.168.1.55 dev eth0 FAILED

192.168.1.235 dev eth0 FAILED

192.168.1.186 dev eth0 FAILED

192.168.1.164 dev eth0 FAILED

192.168.1.57 dev eth0 FAILED

192.168.1.109 dev eth0 FAILED

192.168.1.251 dev eth0 FAILED

192.168.1.204 dev eth0 FAILED

192.168.1.179 dev eth0 FAILED

192.168.1.38 dev eth0 FAILED

192.168.1.62 dev eth0 FAILED

192.168.1.197 dev eth0 FAILED

192.168.1.90 dev eth0 FAILED

192.168.1.71 dev eth0 FAILED

192.168.1.51 dev eth0 FAILED

192.168.1.113 dev eth0 FAILED

192.168.1.209 dev eth0 FAILED

192.168.1.85 dev eth0 FAILED

192.168.1.183 dev eth0 FAILED

192.168.1.32 dev eth0 FAILED

192.168.1.53 dev eth0 FAILED

192.168.1.69 dev eth0 FAILED

192.168.1.133 dev eth0 FAILED

192.168.1.247 dev eth0 FAILED

192.168.1.217 dev eth0 FAILED

192.168.1.50 dev eth0 FAILED

192.168.1.220 dev eth0 FAILED

192.168.1.205 dev eth0 FAILED

192.168.1.163 dev eth0 FAILED

192.168.1.243 dev eth0 FAILED

192.168.1.206 dev eth0 FAILED

192.168.1.78 dev eth0 FAILED

192.168.1.13 dev eth0 FAILED

192.168.1.153 dev eth0 FAILED

192.168.1.37 dev eth0 FAILED

192.168.1.219 dev eth0 FAILED

192.168.1.27 dev eth0 FAILED

192.168.1.48 dev eth0 FAILED

192.168.1.36 dev eth0 FAILED

192.168.1.35 dev eth0 FAILED

192.168.1.116 dev eth0 FAILED

192.168.1.224 dev eth0 FAILED

192.168.1.162 dev eth0 FAILED

192.168.1.151 dev eth0 FAILED

192.168.1.23 dev eth0 FAILED

192.168.1.107 dev eth0 FAILED

192.168.1.17 dev eth0 FAILED

192.168.1.3 dev eth0 FAILED

192.168.1.8 dev eth0 FAILED

192.168.1.208 dev eth0 FAILED

192.168.1.76 dev eth0 FAILED

192.168.1.145 dev eth0 FAILED

192.168.1.14 dev eth0 FAILED

192.168.1.215 dev eth0 FAILED

192.168.1.75 dev eth0 FAILED

192.168.1.178 dev eth0 FAILED

192.168.1.84 dev eth0 FAILED

192.168.1.241 dev eth0 FAILED

192.168.1.95 dev eth0 FAILED

192.168.1.140 dev eth0 FAILED

192.168.1.117 dev eth0 FAILED

192.168.1.148 dev eth0 FAILED

192.168.1.92 dev eth0 FAILED

192.168.1.207 dev eth0 FAILED

192.168.1.1 dev eth0 lladdr 00:16:b6:11:41:66 REACHABLE

192.168.1.123 dev eth0 FAILED

192.168.1.143 dev eth0 FAILED

192.168.1.89 dev eth0 FAILED

192.168.1.165 dev eth0 FAILED

192.168.1.47 dev eth0 FAILED

192.168.1.12 dev eth0 FAILED

192.168.1.236 dev eth0 FAILED

192.168.1.167 dev eth0 FAILED

192.168.1.244 dev eth0 FAILED

192.168.1.196 dev eth0 FAILED

192.168.1.180 dev eth0 FAILED

nbtscan

Installation under Debian or derivatives.

Bash
rokitoh@red-orbita:~$ apt-get install nbtscan

Sniffer that allows you to obtain the Netbios names connected to our network.

Bash
rokitoh@red-orbita:~$ nbtscan -r 192.168.1.1/24

Doing NBT name scan for addresses from 192.168.1.1/24
IP address         NetBIOS         Name Server          User MAC address

——————————————————————————

192.168.1.0        Sendto failed:        Permission denied

192.168.1.102    <unknown>        <unknown>

192.168.1.255    Sendto failed:        Permission denied

Web oficial: http://www.unixwiz.net/tools/nbtscan.html

In my case, as we can see, I don't have any Windows running around here.

AutoScan Network


Installing AutoScan

We download on its official website:


Conocer los equipos que estan conectados a mi red Windows 2000/XP/Vista (i386 Binary)
Linux Linux (i386 Binary)
Mac Os Mac OS (i386 Binary)
Nokia Maemo 4 (Nokia N810)
Solaris OpenSolaris

We unzip the file.

Bash
rokitoh@red-orbita:~$  tar xvf AutoScan-Network-Linux-1.50.bin.tar.gz

AutoScan-Network-Linux-1.50.sh

We run the extracted binary.

CODE
Bash
rokitoh@red-orbita:~$  ./AutoScan-Network-Linux-1.50.sh
Verifying archive integrity... All good.
Uncompressing AutoScan Network Package....

Checking for sudo... -e  found [/usr/bin/sudo]
/tmp/selfgz6874
              ..;;;;::::::..
             iiLLLLLLLLLLffLLGGffjjttii,,::
         iiDDLLiiiiiiiiiiii;;::..::,,iiiiiitttt;;::
       iiKKttiiii;;;;;;ii;;..  ......,,ttttiiiijjjjtt,,
       DDGG;;ii;;::;;iitt,,  ......::::DDGGiiiiiittffLLjj::
       KKff;;ii....,,;;ii,,....  ..::::KKDD;;iiiiiittffGGLLtt
       EELL;;;;....,,;;ii,,....::::::;;##WW;;;;;;iiiijjffLLEELL..
       ffKKttii....,,;;;;;;::::..::::tt##WWttii;;iiiijjffLLEEKKff
       ..GGKKtt;;..,,;;;;;;,,,,::,,,,jj##WWttii;;iiiittjjLLEEKKEEii
         ..jjKKjjiiii;;;;;;;;,,,,,,iijj##WWii;;;;;;iiiijjffEEEEDDff
             ffKKjjjjffjjii;;;;;;;;;;tt##KK;;;;;;;;iiiijjLLEEDDGGff
               EEEEjjLLGGLLjjtt;;;;;;;;WWDD;;;;;;;;iiiijjGGDDGGGGtt
               iiWWGGffGGLLffttii;;;;;;DDLL;;;;;;;;;;ttffDDDDGGGG;;
                 iiWWDDLLGGLLffttiiii;;;;;;;;;;;;iiiijjDDDDGGGGLL..
                   ttWWDDLLGGLLffjjttiiii;;iiiiiiiittGGDDGGGGLLLL..
                     ttKKDDGGGGLLffffii;;,,;;iiiijjLLDDDDGGGGLLff
                       ttDDDDDDGGLLLLffii;;iijjffDDDDGGGGLLfftt;;
                         ..iiLLDDDDDDGGGGLLDDDDGGGGffii;;
                               iittjjjjjjjjjjttii;;..

                                   AUTOSCAN

Please enter your root password
[sudo] password for rokitoh:

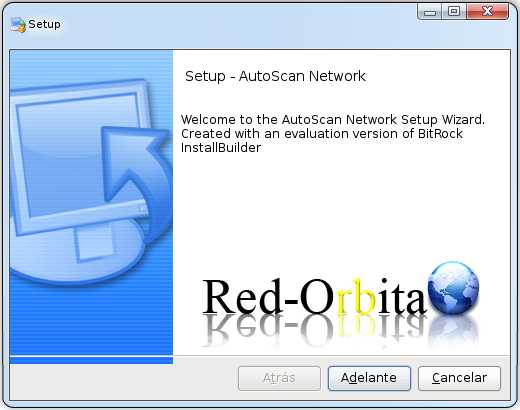

An installation wizard opens, Go ahead.

Pantallazo1

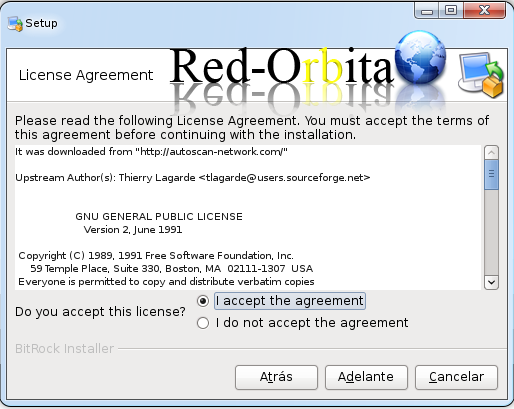

We read and accept the license.

Pantallazo 110

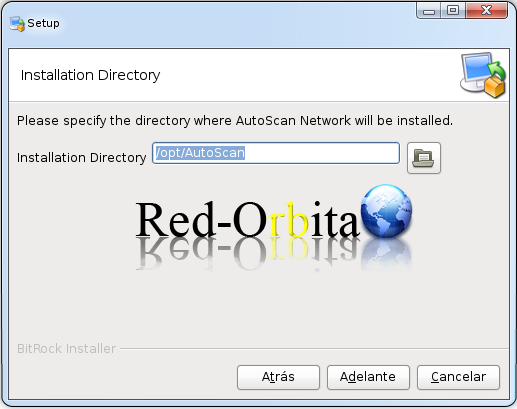

We tell it where we want to install it.

Pantallazo 210

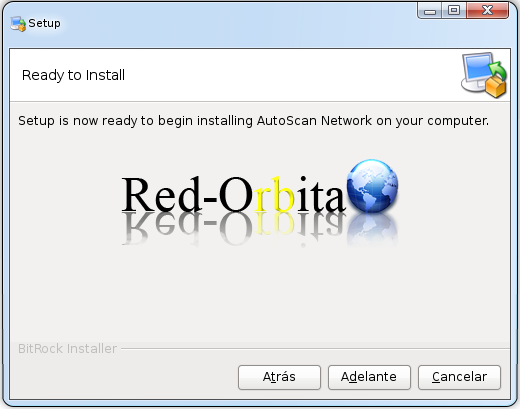

It shows us a message telling us that the configuration is already ready for installation.

Pantallazo 35

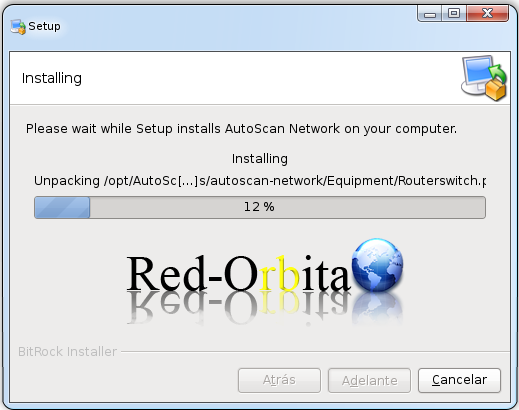

Start installing…

Pantallazo 41

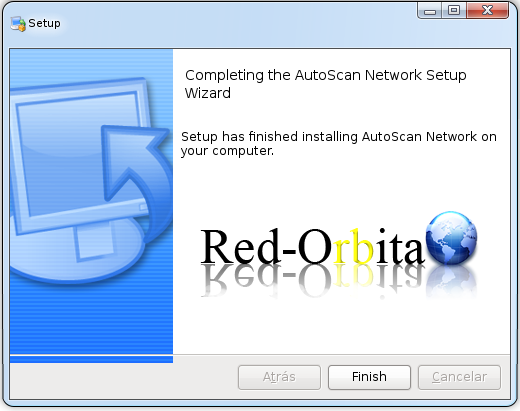

We finish the wizard.

Pantallazo 51

AutoScan-Network It is a network scanner that allows us to explore and control the devices and equipment connected to it

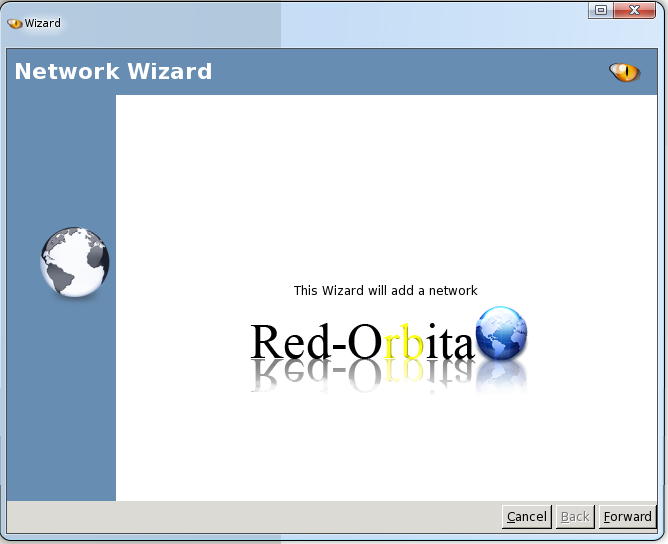

When we open AutoScan it shows us a wizard to configure the network we want to scan.

Pantallazo 72

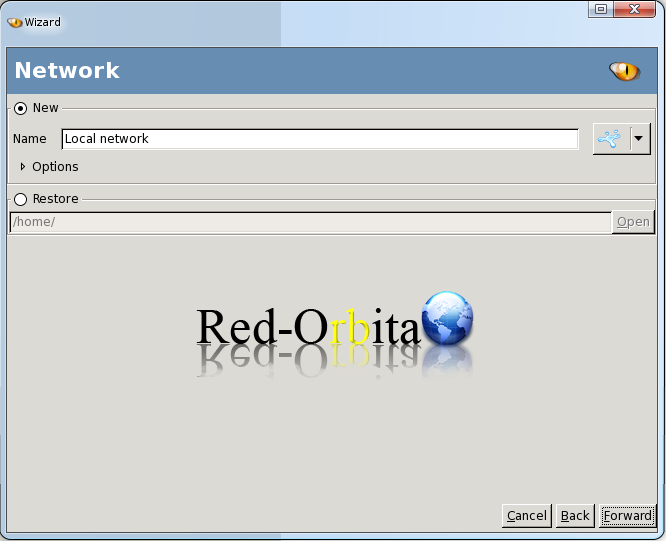

The name of the network.

Pantallazo 81

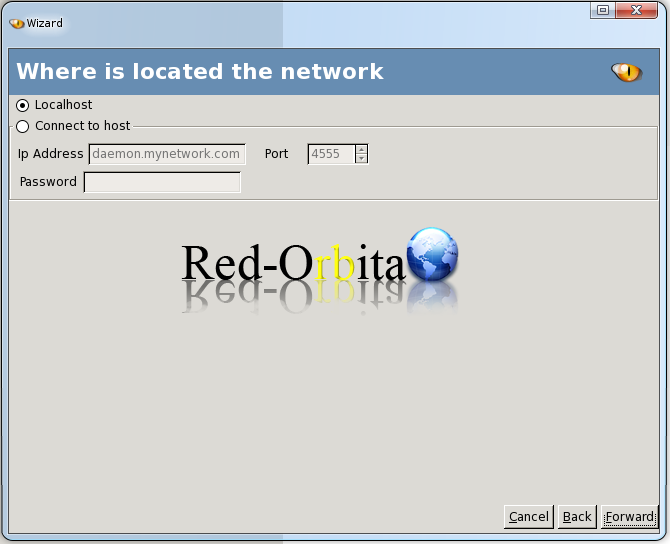

Localhost

Pantallazo 91

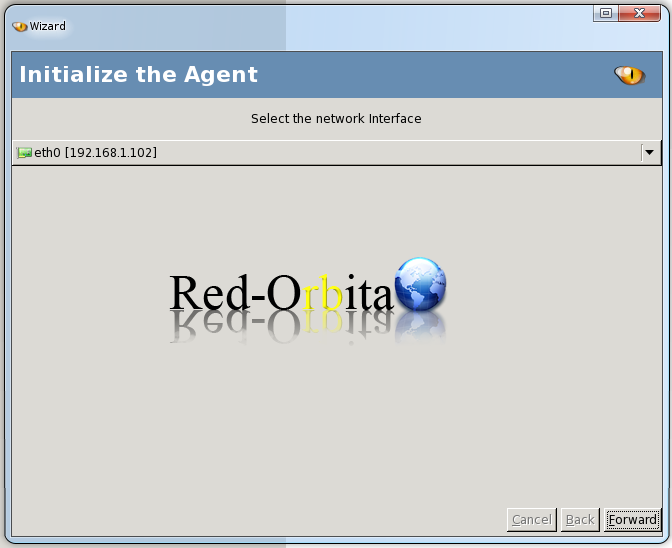

The interface through which we are going to do the scan.

Pantallazo 101

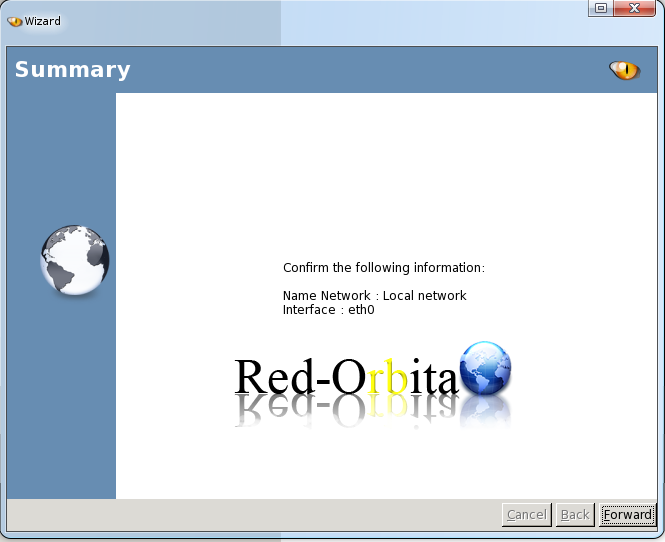

Configuration summary.

Pantallazo 112

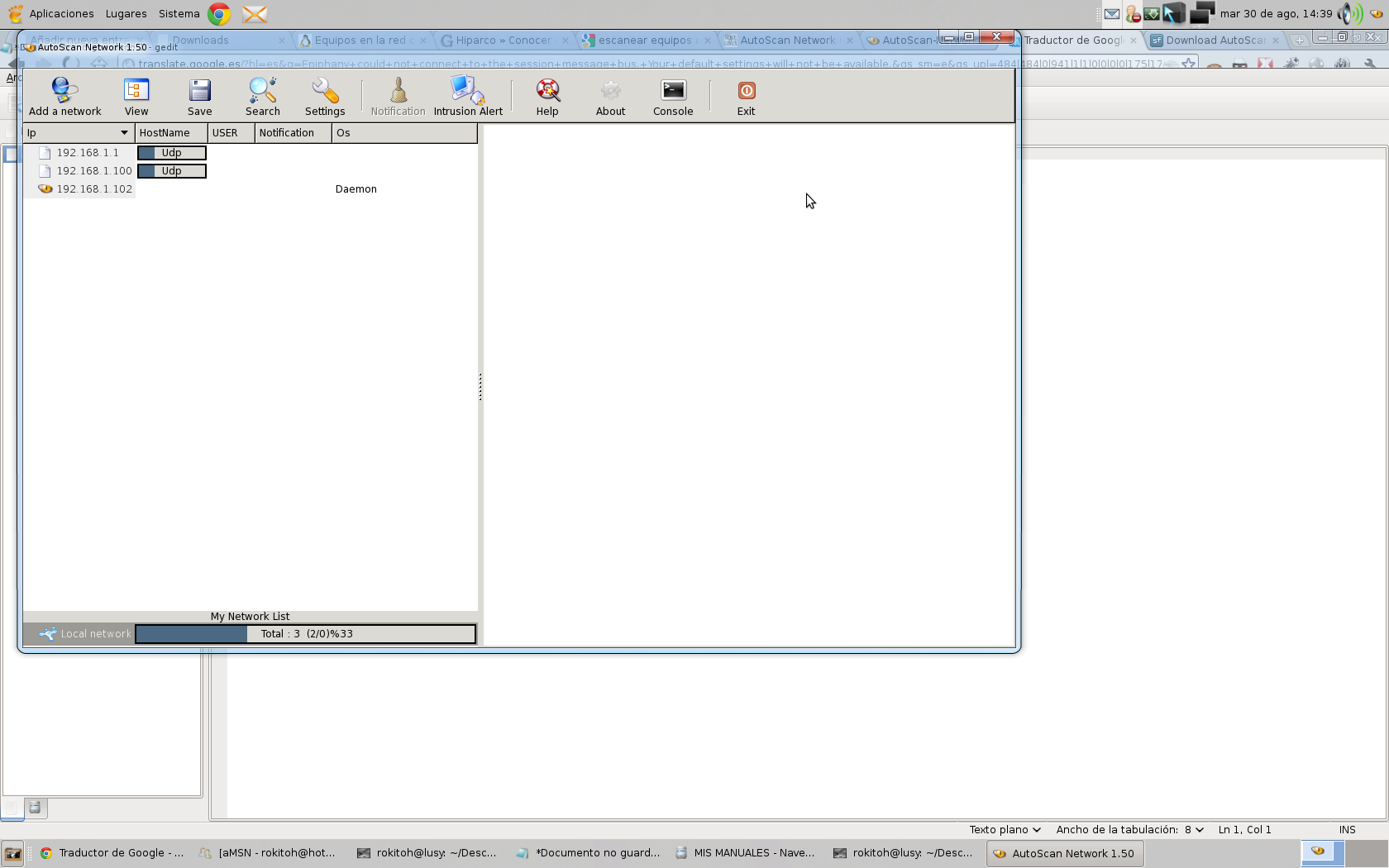

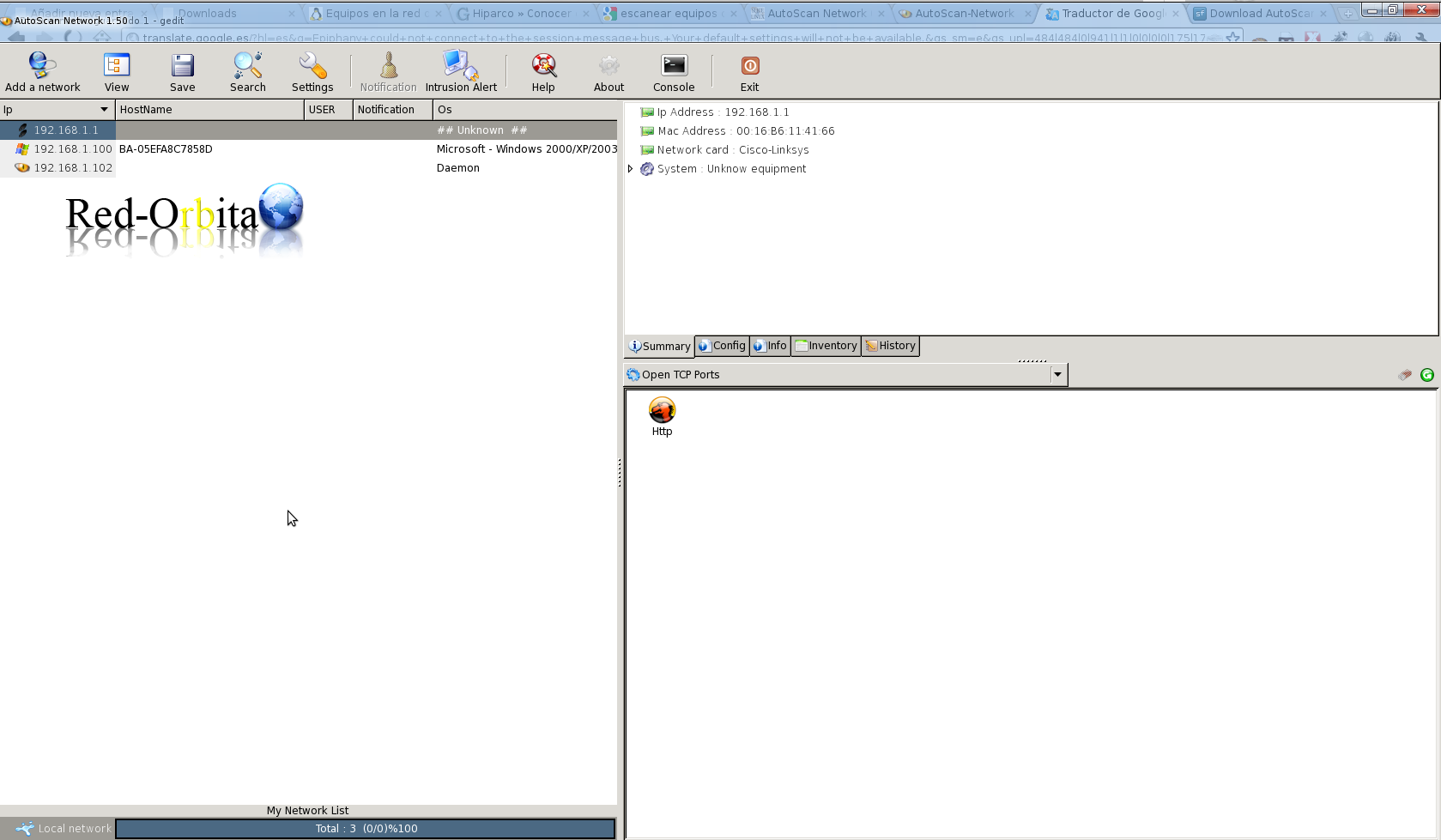

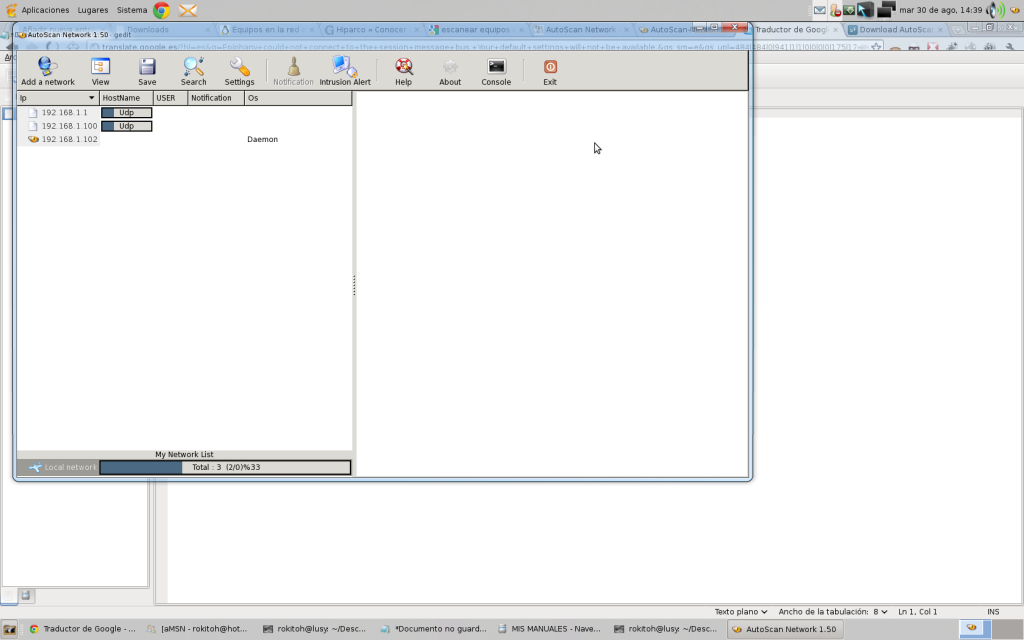

and starts scanning all the computers on the network.

Pantallazo 121

Pantallazo 131

Web oficial: http://autoscan-network.com/

So far, I hope it has been useful to you and if you know any other software or way to scan the computers that are on our network, post it below.

Greetings, rokitoh!
