Esta vez vamos a ver como monitorizar una netapp en Cluster por si hubiese algun problema….para ello vamos a utilizar la monitorización realizada anteriormente en el manual: «Monitorización de un servidor Netapp en Nagios»
https://red-orbita.com/?p=5433
Definir los comandos:
para definir tenemos que añadir los siguientes comandos al fichero commands.cfg, este fichero estará… dependiendo de la instalación que habríais realizado:
bash
vi /etc/nagios3/commands.cfgbash
define command{
command_name check_snmp_netappcluster
command_line /usr/bin/perl $USER1$/check_netapp -H $HOSTADDRESS$ -C $ARG1$ -s $ARG2$
}Añadimos los chequeos a redorbitanetapp.cfg
bash
vi /etc/nagios3/etc/cfg/Netapp/redorbitanetapp.cfg
define service{
use netapp-srv
host_name redorbitanetapp_192.168.1.18
service_description Estado Clustercheck_command check_snmp_netappcluster!public!cluster
}Chequeamos para ver si no hay ningún error en los archivos de configuración
bash
rokitoh@nagios:/etc/nagios3/etc/cfg/Netapp# /etc/init.d/nagios3 check
Nagios Core 3.2.1
Copyright (c) 2009-2010 Nagios Core Development Team and Community Contributors
Copyright (c) 1999-2009 Ethan Galstad
Last Modified: 03-09-2010
License: GPL
Website: http://www.nagios.org
Reading configuration data…
Read main config file okay…
Processing object config file ‘/etc/nagios3/commands.cfg’…
Processing object config directory ‘/usr/lib/nagios/plugins’…
Processing object config file ‘/usr/lib/nagios/plugins/mailq.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_storage.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ifstatus.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_load.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/breeze.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ftp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/apt.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/tcp_udp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ntp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/dummy.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/mrtg.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/rpc-nfs.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/users.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/games.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/real.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/pgsql.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_vrrp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/flexlm.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_win.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ssh.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ping.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/news.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/telnet.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/radius.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/fping.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/netware.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_cpfw.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_process.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/procs.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ldap.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/mysql.cfg’…
Processing object config directory ‘/usr/lib/nagios/plugins/doc’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_int.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_mem.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_env.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/load.cfg’…
Processing object config directory ‘/etc/nagios3/conf.d’…
Processing object config file ‘/etc/nagios3/conf.d/timeperiods_nagios2.cfg’…
Processing object config file ‘/etc/nagios3/conf.d/contacts.cfg’…
Processing object config file ‘/etc/nagios3/conf.d/generic-host_nagios2.cfg’…
Processing object config file ‘/etc/nagios3/conf.d/generic-service_nagios2.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Windows/templete.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Windows/hosts.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Windows/cpd01.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Windows/contacts.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Linux/templete.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Linux/hosts.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Linux/cacti.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Linux/contacts.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Netapp/templete.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Netapp/hosts.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Netapp/redorbitanetapp.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Netapp/contacts.cfg’…
Warning: Duplicate definition found for service ‘Uso CPU’ on host ‘cacti_192.168.1.111′ (config file ‘/etc/nagios3/etc/cfg/Linux/cacti.cfg’, starting on line 23)
Warning: Duplicate definition found for service ‘Uso CPU’ on host ‘cacti_192.168.1.111′ (config file ‘/etc/nagios3/etc/cfg/Linux/cacti.cfg’, starting on line 16)
Read object config files okay…
Running pre-flight check on configuration data…
Checking services…
Checked 24 services.
Checking hosts…
Checked 3 hosts.
Checking host groups…
Checked 3 host groups.
Checking service groups…
Checked 0 service groups.
Checking contacts…
Checked 4 contacts.
Checking contact groups…
Checked 4 contact groups.
Checking service escalations…
Checked 0 service escalations.
Checking service dependencies…
Checked 0 service dependencies.
Checking host escalations…
Checked 0 host escalations.
Checking host dependencies…
Checked 0 host dependencies.
Checking commands…
Checked 193 commands.
Checking time periods…
Checked 4 time periods.
Checking for circular paths between hosts…
Checking for circular host and service dependencies…
Checking global event handlers…
Checking obsessive compulsive processor commands…
Checking misc settings…
Total Warnings: 0
Total Errors: 0Things look okay – No serious problems were detected during the pre-flight check
Y reiniciamos nagios
bash
rokitoh@nagios:/etc/nagios3/etc/cfg/Netapp# /etc/init.d/nagios3 reload
Reloading nagios3 monitoring daemon configuration files: nagios3.

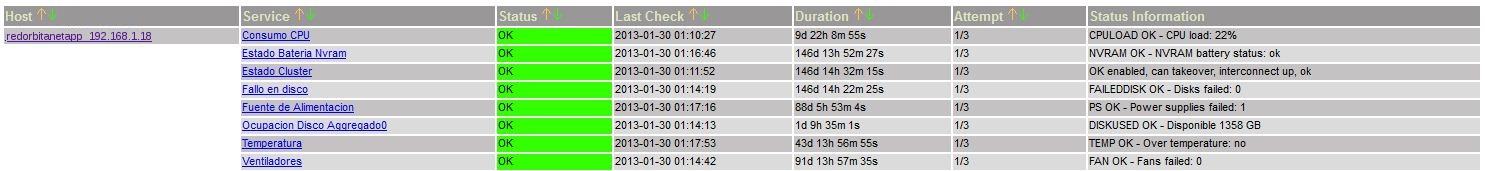

rokitoh@nagios:/etc/nagios3/etc/cfg/Netapp#Abrimos nagios en nuestro navegador favorito y si todo a salido bien lo tendríamos que tener OK!
