Privado: Instalación Load Balancer y reverse proxy en HA con NGINX keepalived

En este ejemplo vamos a mostrar como implementar un balanceador de carga usando NGINX y keepalived en modo Activo-Pasivo el cual realiza un balanceo de carga mediante round robin a los diferentes reverse proxy.

mediante esta configuración podremos escalar horizontalmente los servidores de aplicaciones y así aumentar el rendimiento, disminuir la latencia y proporcionar tolerancia a fallar.

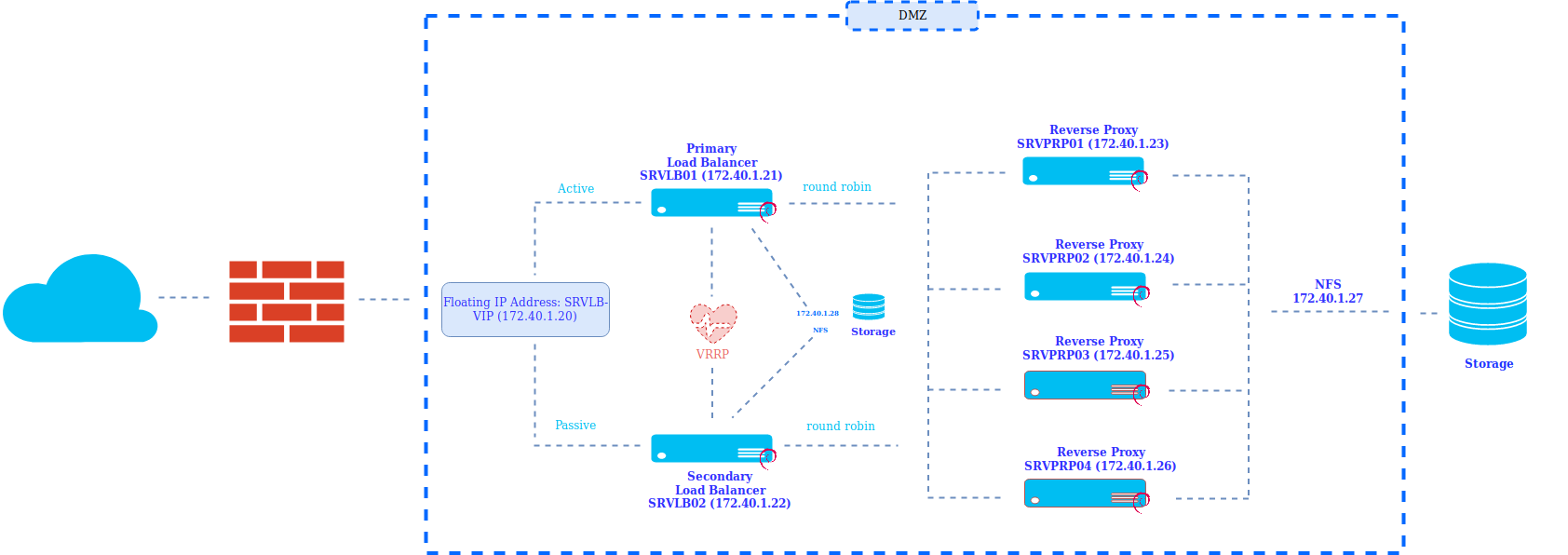

Diagrama de RED:

Configuración Load Balancer:

Instalamos los paquetes necesarios

bash

apt-get install  keepalived nfs-common psad fail2ban

Configuramos el file system NFS desde la cabina en los dos balanceadores de carga:

text

172.40.1.28:/svm_loadbalancer_nginx/ /etc/nginx/ nfs auto,nofail,noatime,nolock,intr,tcp,actimeo=1800 0

Realizamos la configuración de keepalived

SRVLB01 (Nodo Master)

bash

cat /etc/keepalived/keepalived.conf
global_defs {

router_id master

}
vrrp_script chk_nginx {

script «/etc/keepalived/nginx_check.sh»

interval 2

weight -20

}
vrrp_instance VI_1 {

state MASTER

interface ens192

virtual_router_id 200

priority 250

advert_int 1
virtual_ipaddress {

172.40.1.20

}
track_script {

chk_nginx

}
}

SRVLB02 Nodo Backup

text

cglobal_defs {

router_id backup

}
vrrp_script chk_nginx {

script «/etc/keepalived/nginx_check.sh»

interval 2

weight -20

}

vrrp_instance VI_1 {

state BACKUP

interface ens192

virtual_router_id 200

priority 100

advert_int 1

track_script {

chk_nginx

}

virtual_ipaddress {

172.20.0.16

}
track_script {

chk_nginx

}
}

Configuramos un chequeo el cual inicia el NGINX si detecta que esta caído y en caso de no poder iniciar el servicio balancea al nodo de backup.

bash

cat /etc/keepalived/nginx_check.sh
#!/bin/bash

nginx=`ps -fea | grep -v /etc/keepalived/nginx_check.sh | grep -v grep | grep nginx | wc -l `

if [ $nginx = «0» ]

then
service nginx start
fi
sleep 5
nginx=`ps -fea | grep -v /etc/keepalived/nginx_check.sh | grep -v grep | grep nginx | wc -l `
if [ $nginx = «0» ]

then
service keepalived stop
fi

Una vez configurado el servicio keepalived pasamos a configurar el servicio NGINX el cual realizará en Load Balancer.

Instalamos NGINX en los balanceadores

bash

apt-get install nginx

Realizamos un tuning del servicio NGINX siguiendo las mejores practicas.

nginx

cat /etc/nginx/nginx.conf

user www-data;

worker_processes auto;

pid /run/nginx.pid;

include /etc/nginx/modules-enabled/*.conf;
worker_rlimit_nofile 100000;
events {

#worker_connections 768;

worker_connections 4000;

use epoll;

multi_accept on;

}
http {
##

# Basic Settings

##
open_file_cache max=200000 inactive=20s;

open_file_cache_valid 30s;

open_file_cache_min_uses 2;

open_file_cache_errors on;
access_log off;
sendfile on;

tcp_nopush on;

tcp_nodelay on;

types_hash_max_size 2048;

server_tokens off;
# server_names_hash_bucket_size 64;

# server_name_in_redirect off;
include /etc/nginx/mime.types;

default_type application/octet-stream;
##

# SSL Settings

##
ssl_protocols TLSv1 TLSv1.1 TLSv1.2; # Dropping SSLv3, ref: POODLE

ssl_prefer_server_ciphers on;
##

# Logging Settings

##
access_log /var/log/nginx/access.log;

error_log /var/log/nginx/error.log;
##

# Gzip Settings

##
gzip on;

gzip_min_length 10240;

gzip_proxied expired no-cache no-store private auth;

gzip_types text/plain text/css text/xml text/javascript application/x-javascript application/json application/xml;

gzip_disable «msie6»;
reset_timedout_connection on;

#client_body_timeout 10;

#send_timeout 2;

send_timeout 10;

#keepalive_timeout 30;

keepalive_timeout 15;

keepalive_requests 100000;
# gzip_vary on;

# gzip_proxied any;

# gzip_comp_level 6;

# gzip_buffers 16 8k;

# gzip_http_version 1.1;

# gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;
##

# Virtual Host Configs

##
include /etc/nginx/conf.d/*.conf;

include /etc/nginx/sites-enabled/*;
#  DDOS
# limit the number of connections per single IP

limit_conn_zone $binary_remote_addr zone=conn_limit_per_ip:10m;
# limit the number of requests for a given session

limit_req_zone $binary_remote_addr zone=req_limit_per_ip:10m rate=5r/s;
# zone which we want to limit by upper values, we want limit whole server

server {

limit_conn conn_limit_per_ip 10;

limit_req zone=req_limit_per_ip burst=10 nodelay;

}
# if the request body size is more than the buffer size, then the entire (or partial)

# request body is written into a temporary file

client_body_buffer_size 128k;
# headerbuffer size for the request header from client — for testing environment

client_header_buffer_size 3m;
# maximum number and size of buffers for large headers to read from client request

large_client_header_buffers 4 256k;
# read timeout for the request body from client — for testing environment

#client_body_timeout 5m;

client_body_timeout 5s;
# how long to wait for the client to send a request header — for testing environment

#client_header_timeout 3m;

client_header_timeout 5s;
client_max_body_size 100M;
}

A su vez configuramos el virtualhost correspondiente, en nuestro caso en backend alojara la pagina web de red-orbita.com

powershell

cat /etc/nginx/sites-enabled/redorbita.conf
upstream backend_servers_redorbita {

least_conn;

server 172.40.1.23 max_fails=1 fail_timeout=5s;

server 172.40.1.24 max_fails=1 fail_timeout=5s;

server 172.40.1.25 max_fails=1 fail_timeout=5s backup;

server 172.40.1.26 max_fails=1 fail_timeout=5s backup;
}
server {

listen 443 ssl;

server_name red-orbita.com

#limit_conn conn_limit_per_ip 50;

#limit_req zone=req_limit_per_ip burst=50 nodelay;

access_log /var/log/nginx/redorbita.access.log;

error_log /var/log/nginx/redorbita.error.log;

#root /var/www/html;

index index.html index.htm;
####################################### SSL ###################################################################
ssl on;

ssl_certificate /etc/nginx/ssl/redorbita-cert.pem;

ssl_certificate_key /etc/nginx/ssl/redorbita-privatekey.key;

keepalive_timeout 60;
ssl_ciphers ALL:!ADH:!EXPORT56:RC4+RSA:+HIGH:+MEDIUM:+LOW:+SSLv3:+EXP;

ssl_protocols SSLv3 TLSv1;

ssl_prefer_server_ciphers on;

ssl_verify_client off;
proxy_buffers 16 64k;

proxy_buffer_size 128k;
################################################################################################################
location / {
proxy_pass http://backend_servers_redorbita;

proxy_buffers 16 32k;

proxy_buffer_size 64k;

proxy_busy_buffers_size 128k;

proxy_cache_bypass $http_pragma $http_authorization;

proxy_connect_timeout 59s;

proxy_hide_header X-Powered-By;

proxy_http_version 1.1;

proxy_ignore_headers Cache-Control Expires;

proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504 http_404;

proxy_no_cache $http_pragma $http_authorization;

proxy_pass_header Set-Cookie;

proxy_read_timeout 600;

proxy_redirect off;

proxy_send_timeout 600;

proxy_temp_file_write_size 64k;

proxy_set_header Accept-Encoding »;

proxy_set_header Cookie $http_cookie;

proxy_set_header Host $host;

proxy_set_header Proxy »;

proxy_set_header Referer $http_referer;

proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

proxy_set_header X-Forwarded-Host $host;

proxy_set_header X-Forwarded-Server $host;

proxy_set_header X-Real-IP $remote_addr;

proxy_set_header X-Forwarded-Proto $scheme;

proxy_set_header X-Original-Request $request_uri;
}
}

Configuración de reverse proxy (SRVPRP01, SRVPRP02, SRVPRP03 y SRVPRP04)

Antes de nada instalamos los paquetes necesarios

bash

apt-get install   nfs-common

Configuramos el file system que exportamos desde la cabina

text

172.40.1.27:/svm_reverseproxy_nginx/ /etc/nginx/ nfs auto,nofail,noatime,nolock,intr,tcp,actimeo=1800 0 0

Instalamos el servicio de NGINX

bash

apt-get install nginx

Configuramos el virtualhost correspondiente:

powershell

cat /etc/nginx/sites-enabled/redorbita.conf
proxy_cache_path /tmp/nginx levels=1:2 keys_zone=redorbita_zone:10m inactive=60m;

proxy_cache_key «$scheme$request_method$host$request_uri»;
upstream web_redorbita

{

server 10.10.4.2;
}
server {

listen 80;

server_name red-orbita.com;

#limit_conn conn_limit_per_ip 50;

#limit_req zone=req_limit_per_ip burst=50 nodelay;

access_log /var/log/nginx/redorbita.access.log;

error_log /var/log/nginx/redorbita.error.log;

root /var/www/html;

index index.html index.htm;
location / {
proxy_pass http://web_redorbita;

proxy_cache innovasport_zone;

add_header X-Proxy-Cache $upstream_cache_status;

include proxy_params;

proxy_headers_hash_max_size 51200;

proxy_headers_hash_bucket_size 6400;

proxy_buffers 16 32k;

proxy_buffer_size 64k;

proxy_busy_buffers_size 128k;

proxy_cache_bypass $http_pragma $http_authorization;

proxy_connect_timeout 59s;

proxy_hide_header X-Powered-By;

proxy_http_version 1.1;

proxy_ignore_headers Cache-Control Expires;

proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504 http_404;

proxy_no_cache $http_pragma $http_authorization;

proxy_pass_header Set-Cookie;

proxy_read_timeout 600;

proxy_redirect off;

proxy_send_timeout 600;

proxy_temp_file_write_size 64k;

proxy_set_header Accept-Encoding »;

proxy_set_header Cookie $http_cookie;

proxy_set_header Host $host;

proxy_set_header Proxy »;

proxy_set_header Referer $http_referer;

proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

proxy_set_header X-Forwarded-Host $host;

proxy_set_header X-Forwarded-Server $host;

proxy_set_header X-Real-IP $remote_addr;

proxy_set_header X-Forwarded-Proto $scheme;

proxy_set_header X-Original-Request $request_uri;
}
}

Creamos un usuario de servicio en todos los servidores:

text

useradd redorbitaservices && passwd redorbitaservices

Creamos el RSA y lo copiamos desde SRVPROP01 a los otros reverse proxy

text

su – redorbitaservices
ssh-keygen

ssh-copy-id -i ~/.ssh/id_rsa.pub 172.40.1.23

ssh-copy-id -i ~/.ssh/id_rsa.pub 172.40.1.24

ssh-copy-id -i ~/.ssh/id_rsa.pub 172.40.1.25

ssh-copy-id -i ~/.ssh/id_rsa.pub 172.40.1.26

Creamos un script para el reinicio del servicio NGINX de todos los servidores desde el servidor SRVPROP01

bash

cat /etc/init.d/nginx-all-Services.sh

#!/bin/bash
if [ «$(id -u)» != «1001» ]; then

echo «Este script se tiene que ejecutar con el usuario redorbitaservices» 1>&2

exit 1

fi
start() {
echo -e ‘\e[0;31mStaring NGINX ALL NODES :\e[0m’
echo -e ‘\e[0;32mSRVPRP01(172.40.1.23) :\e[0m’

sudo systemctl start nginx
echo -e ‘\e[0;32mSRVPRP02 (172.40.1.24) :\e[0m’

ssh -t 172.20.0.18 sudo systemctl start nginx
echo -e ‘\e[0;32mSRVPRP03 (172.40.1.25) :\e[0m’
if ping -c1 172.40.1.25 &>/dev/null;

then

ssh -t 172.40.1.25 sudo systemctl start nginx
else
echo -e ‘\e[0;31m El nodo SRVPRP03 (172.40.1.25) esta apagado\e[0m’
fi
echo -e ‘\e[0;32mSRVPRP04 (172.40.1.26) :\e[0m’

if ping -c1 172.40.1.26 &>/dev/null;

then

ssh -t 172.40.1.26 sudo systemctl start nginx
else
echo -e ‘\e[0;31m El nodo SRVPRP04 (172.40.1.26) esta apagado\e[0m’

fi
}
stop() {

echo -e ‘\e[0;31mStopping NGINX ALL NODES :\e[0m’
echo -e ‘\e[0;32mSRVPRP01(172.40.1.23):\e[0m’

sudo systemctl stop nginx
echo -e ‘\e[0;32mSRVPRP02 (172.40.1.24) :\e[0m’

ssh -t 172.40.1.24 sudo systemctl stop nginx
echo -e ‘\e[0;32mSRVPRP03 (172.40.1.25) :\e[0m’

if ping -c1 172.40.1.25 &>/dev/null;

then

ssh -t 172.40.1.25 sudo systemctl stop nginx
else
echo -e ‘\e[0;31m El nodo SRVPRP03 (172.40.1.25) esta apagado\e[0m’
fi
echo -e ‘\e[0;32mSRVPRP04 (172.40.1.26) :\e[0m’

if ping -c1 172.40.1.26 &>/dev/null;

then

ssh -t 172.40.1.26 sudo systemctl stop nginx
else
echo -e ‘\e[0;31m El nodo SRVPRP04 (172.40.1.26) esta apagado\e[0m’
fi
}
status() {
echo -e ‘\e[0;31mStatus NGINX ALL NODES :\e[0m’
echo -e ‘\e[0;32mSRVPRP01(172.40.1.23) :\e[0m’

sudo systemctl status nginx
echo -e ‘\e[0;32mSRVPRP02 (172.40.1.24) :\e[0m’

ssh -t 172.40.1.24 sudo systemctl status nginx
echo -e ‘\e[0;32mSRVPRP03 (172.40.1.25) :\e[0m’

if ping -c1 172.40.1.25 &>/dev/null;

then

ssh -t 172.40.1.25 sudo systemctl status nginx
else
echo -e ‘\e[0;31m El nodo SRVPRP03 (172.40.1.25) esta apagado\e[0m’
fi
echo -e ‘\e[0;32mSRVPRP04 (172.40.1.26) :\e[0m’

if ping -c1 172.40.1.26 &>/dev/null;

then

ssh -t 172.40.1.26 sudo systemctl status nginx
else
echo -e ‘\e[0;31m El nodo SRVPRP04 (172.40.1.26) esta apagado\e[0m’
fi
}
check() {
echo -e ‘\e[0;31mChecking configure NGINX ALL NODES :\e[0m’
echo -e ‘\e[0;32mSRVPRP01(172.40.1.23) :\e[0m’

sudo nginx -t
echo -e ‘\e[0;32mSRVPRP02 (172.40.1.24) :\e[0m’

ssh -t 172.40.1.24) sudo nginx -t
echo -e ‘\e[0;32mSRVPRP03 (172.40.1.25) :\e[0m’

if ping -c1 172.40.1.25 &>/dev/null;

then

ssh -t 172.40.1.25 sudo nginx -t
else
echo -e ‘\e[0;31m El nodo SRVPRP03 (172.40.1.25) esta apagado\e[0m’

¡
fi
echo -e ‘\e[0;32mSRVPRP04 (172.40.1.26) :\e[0m’

if ping -c1 172.40.1.26 &>/dev/null;

then

ssh -t 172.40.1.26 sudo nginx -t
else
¡

echo -e ‘\e[0;31m El nodo SRVPRP04 (172.40.1.26) esta apagado\e[0m’
fi
}
case «$1» in

start)

start

status

;;

stop)

stop

status

;;

status)

status

;;

restart)

stop

start

;;

check)

check

;;

*)

echo «Usage $prg {start|stop|status|restart|check}»

exit 1

;;

esac

exit $RETVAL

Creamos el RSA y lo copiamos desde SRVLB01 a SRVPRP01 (172.40.1.23)

text

su – redorbitaservices
ssh-keygen

ssh-copy-id -i ~/.ssh/id_rsa.pub 172.40.1.23

Para hacernos mas facil la gestión del balanceador y los proxys inversos creamos un script el cual nos ayudara a la generación de nuevas entradas.

javascript

cat /usr/bin/loadcreate.sh
#!/bin/bash
usage()

{

cat << EOF
USO: $0 -p PUERTO -P PROYECTO -u URL -A IP

Script para agregar nuevas URL al balanceador
OPCIONES:
-p Puertos

-P Nombre del proyecto

-U URL

-A Direccion ip local (Proxy Inverso)
ejemplo de uso: /usr/bin/loadcreate.sh -p 80-443 -P redorbita -u red-orbita.com -A 10.10.1.33

ejemplo de uso: /usr/bin/loadcreate.sh -p 80 -P redorbita -u red-orbita.com -A 10.10.1.33

ejemplo de uso: /usr/bin/loadcreate.sh -p 443 -P redorbita -u red-orbita.com -A 10.10.1.33:8080
EOF

}
#Declaramos todas las variables que se van a usar para guardar los parametros

inputport=

inputproject=

inputurl=

inputaddress=
#Usamos el getopts para guardar los parametros en variables

while getopts «hH:p:P:u:A:» OPTION

do

case $OPTION in

h)

usage

exit 1

;;

p)

inputport=$OPTARG

;;

P)

inputproject=$OPTARG

;;

u)

inputurl=$OPTARG

;;

A)

inputaddress=$OPTARG

;;
esac

done
#Comprobamos que se han introducido los parametros obligatorios

if [ -z $inputport ] || [ -z $inputproject ] || [ -z $inputurl ] || [ -z $inputaddress ]

then

usage

exit 1

fi
function checkproject (){
if [ -f /etc/nginx/sites-enabled/$inputproject.conf ];

then
echo -e «\e[0;31m ERROR: el archivo /etc/nginx/sites-enabled/$inputproject.conf ya existe\e[0m»
exit 1

fi
}
#Funcion para la copia del template segun el puerto
function puertos (){
if [ $inputport = «80-443» ]

then
cp /etc/nginx/templates/template-80-443.tmp /etc/nginx/sites-enabled/$inputproject.conf
elif [ $inputport = «80» ]

then
cp /etc/nginx/templates/template-80.tmp /etc/nginx/sites-enabled/$inputproject.conf
elif [ $inputport = «443» ]

then
cp /etc/nginx/templates/template-443.tmp /etc/nginx/sites-enabled/$inputproject.conf
else echo -e «\e[0;31m RROR: No hemos detectado ningun template con el puerto $inputport\e[0m»
exit 0
fi
}
function configtemplate (){
if [ -f /etc/nginx/sites-enabled/$inputproject.conf ];

then
sed -i -e «s|PROYECTO|$inputproject|g» /etc/nginx/sites-enabled/$inputproject.conf

sed -i -e «s|PROJECT_URL|$inputurl|g» /etc/nginx/sites-enabled/$inputproject.conf
fi
}
checkproject
#Ejecutamos variable de puertos
puertos
configtemplate
############# CONFIGURACION REVERSE PROXY ######################
#Copiamos la el template
cp /etc/nginx/templates/template-reverse.tmp /tmp/$inputproject.conf
if [ -f /tmp/$inputproject.conf ];

then
sed -i -e «s|PROYECTO|$inputproject|g» /tmp/$inputproject.conf

sed -i -e «s|PROJECT_URL|$inputurl|g» /tmp/$inputproject.conf

sed -i -e «s|ADRDRESS_PORT|$inputaddress|g» /tmp/$inputproject.conf
fi
su – redorbitaservices -c «scp /tmp/$inputproject.conf redorbitaservices@172.40.1.23:/tmp/»

su – redorbitaservices -c «ssh -t 172.40.1.23 sudo mv /tmp/$inputproject.conf /etc/nginx/sites-enabled/»

rm /tmp/$inputproject.conf
###############################################################
echo -e «\e[0;31m Se a realizado la configuracion en el Balanceador y el proxy inverso\e[0m»

echo -e «\e[0;31m Revisa la configuracion en /etc/nginx/sites-enabled/$inputproject.conf y reinicie el servicio nginx en ambos nodos\e[0m»

Configuramos en las rutas correspondientes los templates el cual se alimenta el script anterior para realizar la configuración del balanceador y reverse proxy

Template puerto 443

powershell

cat /etc/nginx/templates/template-443.tmp
upstream backend_servers_PROYECTO {

least_conn;

server 172.40.1.23 max_fails=1 fail_timeout=5s;

server 172.40.1.24 max_fails=1 fail_timeout=5s;

server 172.40.1.25 max_fails=1 fail_timeout=5s backup;

server 172.40.1.26 max_fails=1 fail_timeout=5s backup;
}
server {

listen 443 ssl;

server_name PROJECT_URL;

#limit_conn conn_limit_per_ip 50;

#limit_req zone=req_limit_per_ip burst=50 nodelay;

access_log /var/log/nginx/PROYECTO.access.log;

error_log /var/log/nginx/PROYECTO.error.log;

#root /var/www/html;

index index.html index.htm;
####################################### SSL ###################################################################
ssl on;

ssl_certificate /etc/nginx/ssl/PROYECTO.crt;

ssl_certificate_key /etc/nginx/ssl/PROYECTO.key;

keepalive_timeout 60;
ssl_ciphers ALL:!ADH:!EXPORT56:RC4+RSA:+HIGH:+MEDIUM:+LOW:+SSLv3:+EXP;

ssl_protocols SSLv3 TLSv1;

ssl_prefer_server_ciphers on;

ssl_verify_client off;
proxy_buffers 16 64k;

proxy_buffer_size 128k;
################################################################################################################
location / {
proxy_pass http://backend_servers_PROYECTO;

proxy_buffers 16 32k;

proxy_buffer_size 64k;

proxy_busy_buffers_size 128k;

proxy_cache_bypass $http_pragma $http_authorization;

proxy_connect_timeout 59s;

proxy_hide_header X-Powered-By;

proxy_http_version 1.1;

proxy_ignore_headers Cache-Control Expires;

proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504 http_404;

proxy_no_cache $http_pragma $http_authorization;

proxy_pass_header Set-Cookie;

proxy_read_timeout 600;

proxy_redirect off;

proxy_send_timeout 600;

proxy_temp_file_write_size 64k;

proxy_set_header Accept-Encoding »;

proxy_set_header Cookie $http_cookie;

proxy_set_header Host $host;

proxy_set_header Proxy »;

proxy_set_header Referer $http_referer;

proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

proxy_set_header X-Forwarded-Host $host;

proxy_set_header X-Forwarded-Server $host;

proxy_set_header X-Real-IP $remote_addr;

proxy_set_header X-Forwarded-Proto $scheme;

proxy_set_header X-Original-Request $request_uri;
}
}

Template puerto 80

nginx

cat /etc/nginx/templates/template-80.tmp
upstream backend_servers_PROYECTO {

least_conn;

server 172.40.1.23 max_fails=1 fail_timeout=5s;

server 172.40.1.24 max_fails=1 fail_timeout=5s;

server 172.40.1.25 max_fails=1 fail_timeout=5s backup;

server 172.40.1.26 max_fails=1 fail_timeout=5s backup;
}
server {

listen 80;
server_name PROJECT_URL;
location / {
# limit_conn conn_limit_per_ip 50;

# limit_req zone=req_limit_per_ip burst=50 nodelay;
proxy_pass http://backend_servers_PROYECTO;

access_log /var/log/nginx/PROYECTO.access.log;

error_log /var/log/nginx/PROYECTO.error.log;
}
}

Template puertos 80 y 443

powershell

cat /etc/nginx/templates/template-80-443.tmp
upstream backend_servers_PROYECTO {

least_conn;

server 172.40.1.23 max_fails=1 fail_timeout=5s;

server 172.40.1.24 max_fails=1 fail_timeout=5s;

server 172.40.1.25 max_fails=1 fail_timeout=5s backup;

server 172.40.1.26 max_fails=1 fail_timeout=5s backup;
}
server {

listen 80;
location / {
# limit_conn conn_limit_per_ip 50;

# limit_req zone=req_limit_per_ip burst=50 nodelay;
rewrite ^(.*) https://PROJECT_URL$1 permanent;

access_log /var/log/nginx/PROYECTO.access.log;

error_log /var/log/nginx/PROYECTO.error.log;
}
}
server {

listen 443 ssl;

server_name PROJECT_URL;

#limit_conn conn_limit_per_ip 50;

#limit_req zone=req_limit_per_ip burst=50 nodelay;

access_log /var/log/nginx/PROYECTO.access.log;

error_log /var/log/nginx/PROYECTO.error.log;

#root /var/www/html;

index index.html index.htm;
####################################### SSL ###################################################################
ssl on;

ssl_certificate /etc/nginx/ssl/PROYECTO.crt;

ssl_certificate_key /etc/nginx/ssl/PROYECTO.key;

keepalive_timeout 60;
ssl_ciphers ALL:!ADH:!EXPORT56:RC4+RSA:+HIGH:+MEDIUM:+LOW:+SSLv3:+EXP;

ssl_protocols SSLv3 TLSv1;

ssl_prefer_server_ciphers on;

ssl_verify_client off;
proxy_buffers 16 64k;

proxy_buffer_size 128k;
################################################################################################################
location / {
proxy_pass http://backend_servers_PROYECTO;

proxy_buffers 16 32k;

proxy_buffer_size 64k;

proxy_busy_buffers_size 128k;

proxy_cache_bypass $http_pragma $http_authorization;

proxy_connect_timeout 59s;

proxy_hide_header X-Powered-By;

proxy_http_version 1.1;

proxy_ignore_headers Cache-Control Expires;

proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504 http_404;

proxy_no_cache $http_pragma $http_authorization;

proxy_pass_header Set-Cookie;

proxy_read_timeout 600;

proxy_redirect off;

proxy_send_timeout 600;

proxy_temp_file_write_size 64k;

proxy_set_header Accept-Encoding »;

proxy_set_header Cookie $http_cookie;

proxy_set_header Host $host;

proxy_set_header Proxy »;

proxy_set_header Referer $http_referer;

proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

proxy_set_header X-Forwarded-Host $host;

proxy_set_header X-Forwarded-Server $host;

proxy_set_header X-Real-IP $remote_addr;

proxy_set_header X-Forwarded-Proto $scheme;

proxy_set_header X-Original-Request $request_uri;
}
}

Template Reverse Proxy

powershell

cat /etc/nginx/templates/template-reverse.tmp
proxy_cache_path /tmp/nginx levels=1:2 keys_zone=PROYECTO_zone:10m inactive=60m;

proxy_cache_key «$scheme$request_method$host$request_uri»;
upstream web_PROYECTO

{

server ADRDRESS_PORT;

}
server {

listen 80;

server_name PROJECT_URL;

#limit_conn conn_limit_per_ip 50;

#limit_req zone=req_limit_per_ip burst=50 nodelay;

access_log /var/log/nginx/PROYECTO.access.log;

error_log /var/log/nginx/PROYECTO.error.log;

#root /var/www/html;

index index.html index.htm;
location / {
proxy_pass http://web_PROYECTO;

proxy_cache PROYECTO_zone;

add_header X-Proxy-Cache $upstream_cache_status;

include proxy_params;

proxy_headers_hash_max_size 51200;

proxy_headers_hash_bucket_size 6400;

proxy_buffers 16 32k;

proxy_buffers 16 32k;

proxy_buffer_size 64k;

proxy_busy_buffers_size 128k;

proxy_cache_bypass $http_pragma $http_authorization;

proxy_connect_timeout 59s;

proxy_hide_header X-Powered-By;

proxy_http_version 1.1;

proxy_ignore_headers Cache-Control Expires;

proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504 http_404;

proxy_no_cache $http_pragma $http_authorization;

proxy_pass_header Set-Cookie;

proxy_read_timeout 600;

proxy_redirect off;

proxy_send_timeout 600;

proxy_temp_file_write_size 64k;

proxy_set_header Accept-Encoding »;

proxy_set_header Cookie $http_cookie;

proxy_set_header Host $host;

proxy_set_header Proxy »;

proxy_set_header Referer $http_referer;

proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

proxy_set_header X-Forwarded-Host $host;

proxy_set_header X-Forwarded-Server $host;

proxy_set_header X-Real-IP $remote_addr;

proxy_set_header X-Forwarded-Proto $scheme;

proxy_set_header X-Original-Request $request_uri;
}
}

Por ultimo accedemos al servidor backend el cual aloja nuestra pagina web y configuramos las rutas estáticas para que sepa volver.

text

route add -net 172.40.0.0/24 gw 10.10.4.1 dev ens192

Solo nos queda abrir mediente nuestro nevador favorito y probar que todo funciona correctamente.

En la proxima entrada configuraremos el fail2ban y PSAD para otorgar un poco mas de seguridad a nuestro entorno.

:wq!

Articulos relacionados

OpenCode Enterprise: Implementación para Platform Engineering

Implementación de un Bastión de Seguridad con Kernel Hardening (Grsecurity/Self-Protection) y Cifrado de Memoria en Linux

Gestión de Versiones de Terraform con tfenv

Comentarios
