Instalación de NGINX con Modsecurity en FreeBSD

22 agosto, 2018Linux & Systems rokitoh
Instalación de NGINX con Modsecurity en FreeBSD

Tabla de contenidos

En esta entrada vamos a ver como instalar y configurar un NGINX con Modsecurity bajo FreeBSD

Antes de nada refrescamos y actualizamos los ports

text
portsnap fetch auto

pkg upgrade

Instalamos las librerías necesarias:

text
pkg install libxml2 libxslt mod_security3 python git binutils pcre GeoIP libgd openldap-client

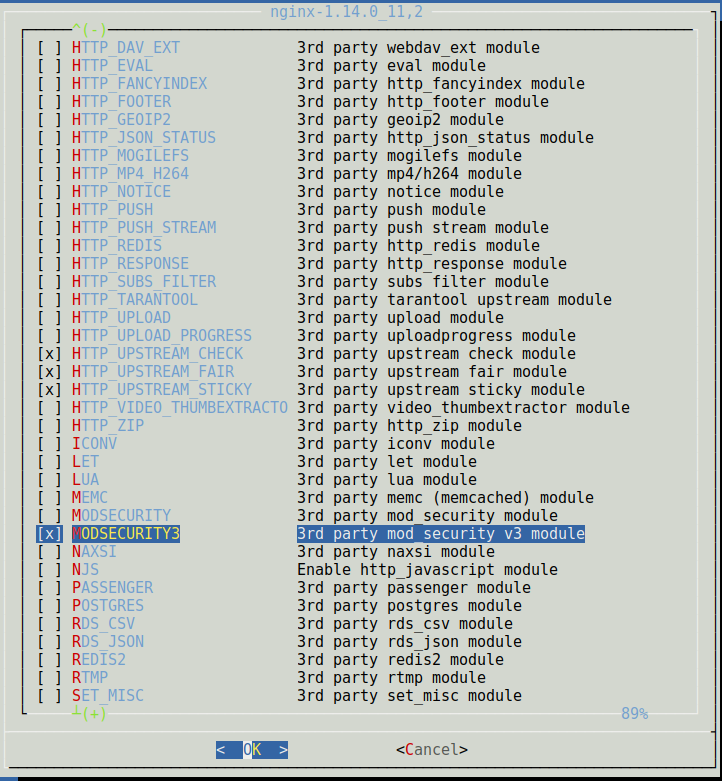

Accedemos al port de NGINX y configuramos los modulos

text
cd /usr/port/www/nginx
make config

Nginx freeBSD modsecurity 01

Compilamos NGINX

text
make install

Creamos las siguientes carpetas dentro del directorio de NGINX

bash
mkdir /usr/local/etc/nginx/conf.d

mkdir /usr/local/etc/nginx/sites-enabled

Realizamos una copia de seguridad de nginx.conf

bash
mv /usr/local/etc/nginx/nginx.conf /usr/local/etc/nginx/nginx.conf-bck

Agregamos la siguiente configuración al fichero nginx.conf

bash
vi /usr/local/etc/nginx/nginx.conf
user www;

worker_processes auto;
worker_rlimit_nofile 100000;
events {

#worker_connections 768;

worker_connections 4000;

use kqueue;

multi_accept on;

}
http {
##

# Basic Settings

##
open_file_cache max=200000 inactive=20s;

open_file_cache_valid 30s;

open_file_cache_min_uses 2;

open_file_cache_errors on;

proxy_cache_path /tmp/nginx levels=1:2 keys_zone=my_zone:10m inactive=60m;
access_log off;
sendfile on;

tcp_nopush on;

tcp_nodelay on;

types_hash_max_size 2048;

server_tokens off;
# server_names_hash_bucket_size 64;

# server_name_in_redirect off;
include /usr/local/etc/nginx/mime.types;

default_type application/octet-stream;
##

# SSL Settings

##
ssl_protocols TLSv1 TLSv1.1 TLSv1.2; # Dropping SSLv3, ref: POODLE

ssl_prefer_server_ciphers on;
##

# Logging Settings

##
access_log /var/log/nginx/access.log;

error_log /var/log/nginx/error.log;
##

# Gzip Settings

##
gzip on;

gzip_min_length 10240;

gzip_proxied expired no-cache no-store private auth;

gzip_types text/plain text/css text/xml text/javascript application/x-javascript application/json application/xml;

gzip_disable «msie6»;
reset_timedout_connection on;

#client_body_timeout 10;

#send_timeout 2;

send_timeout 10;

#keepalive_timeout 30;

keepalive_timeout 15;

keepalive_requests 100000;
# gzip_vary on;

# gzip_proxied any;

# gzip_comp_level 6;

# gzip_buffers 16 8k;

# gzip_http_version 1.1;

# gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;
#Modsecurity
modsecurity on;

modsecurity_rules_file /usr/local/etc/modsecurity/modsecurity.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs-setup.conf;
##

# Virtual Host Configs

##
include /usr/local/etc/nginx/conf.d/*.conf;

include /usr/local/etc/nginx/sites-enabled/*;
}

Configuramos las reglas de Modsecurity

bash
cd /tmp

git clone https://github.com/SpiderLabs/owasp-modsecurity-crs.git

cd owasp-modsecurity-crs/

cp crs-setup.conf.example /usr/local/etc/modsecurity/crs-setup.conf

mkdir /usr/local/etc/modsecurity/crs

cp rules/* /usr/local/etc/modsecurity/crs

Creamos un sitio para probar el funcionamiento del servidor

nginx
cat /usr/local/etc/nginx/sites-enabled/redorbita.conf
server {

listen 80 default_server;

listen [::]:80 default_server;
root /usr/local/www/nginx/;
server_name _;
location / {

################################## ModSecurity ###########################################################
#modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-901-INITIALIZATION.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-903.9001-DRUPAL-EXCLUSION-RULES.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-903.9002-WORDPRESS-EXCLUSION-RULES.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-903.9003-NEXTCLOUD-EXCLUSION-RULES.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-903.9004-DOKUWIKI-EXCLUSION-RULES.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-903.9005-CPANEL-EXCLUSION-RULES.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-905-COMMON-EXCEPTIONS.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-910-IP-REPUTATION.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-911-METHOD-ENFORCEMENT.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-912-DOS-PROTECTION.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-913-SCANNER-DETECTION.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-914-FILE-DETECTION.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-920-PROTOCOL-ENFORCEMENT.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-921-PROTOCOL-ATTACK.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-930-APPLICATION-ATTACK-LFI.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-931-APPLICATION-ATTACK-RFI.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-932-APPLICATION-ATTACK-RCE.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-933-APPLICATION-ATTACK-PHP.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-941-APPLICATION-ATTACK-XSS.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-942-APPLICATION-ATTACK-SQLI.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-943-APPLICATION-ATTACK-SESSION-FIXATION.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-944-APPLICATION-ATTACK-JAVA.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/REQUEST-949-BLOCKING-EVALUATION.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/RESPONSE-950-DATA-LEAKAGES.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/RESPONSE-951-DATA-LEAKAGES-SQL.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/RESPONSE-952-DATA-LEAKAGES-JAVA.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/RESPONSE-953-DATA-LEAKAGES-PHP.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/RESPONSE-954-DATA-LEAKAGES-IIS.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/RESPONSE-959-BLOCKING-EVALUATION.conf;

modsecurity_rules_file /usr/local/etc/modsecurity/crs/RESPONSE-980-CORRELATION.conf;
##########################################################################################################

}

}

Al chequear la configuración vamos a ver diversos errores en las reglas de modsecurity la cual tenemos que eliminar:

text
/usr/local/sbin/nginx -t

nginx: [emerg] «modsecurity_rules_file» directive Rules error. File: /usr/local/etc/modsecurity/crs/REQUEST-912-DOS-PROTECTION.conf. Line: 187. Column: 29. Expecting an action, got: ,\ in /usr/local/etc/nginx/sites-enabled/redorbita.conf:69

nginx: configuration file /usr/local/etc/nginx/nginx.conf test failed
/usr/local/sbin/nginx -t

nginx: [emerg] «modsecurity_rules_file» directive Rules error. File: /usr/local/etc/modsecurity/crs/REQUEST-912-DOS-PROTECTION.conf. Line: 188. Column: 29. Expecting an action, got: ,\ in /usr/local/etc/nginx/sites-enabled/redorbita.conf:69
/usr/local/sbin/nginx -t

nginx: [emerg] «modsecurity_rules_file» directive Rules error. File: /usr/local/etc/modsecurity/crs/REQUEST-914-FILE-DETECTION.conf. Line: 70. Column: 85. Expecting a variable, got: : S}: %{MATCHED_VARS}’,\ in /usr/local/etc/nginx/sites-enabled/redorbita.conf:71
/usr/local/sbin/nginx -t

nginx: [emerg] «modsecurity_rules_file» directive Rules error. File: /usr/local/etc/modsecurity/crs/REQUEST-914-FILE-DETECTION.conf. Line: 121. Column: 85. Expecting a variable, got: : S}: %{MATCHED_VARS}’,\ in /usr/local/etc/nginx/sites-enabled/redorbita.conf:71

Tras eliminar las reglas erroneas chequeamos y reiniciamos:

bash
/usr/local/sbin/nginx -t

nginx: the configuration file /usr/local/etc/nginx/nginx.conf syntax is ok

nginx: configuration file /usr/local/etc/nginx/nginx.conf test is successful
service nginx restart

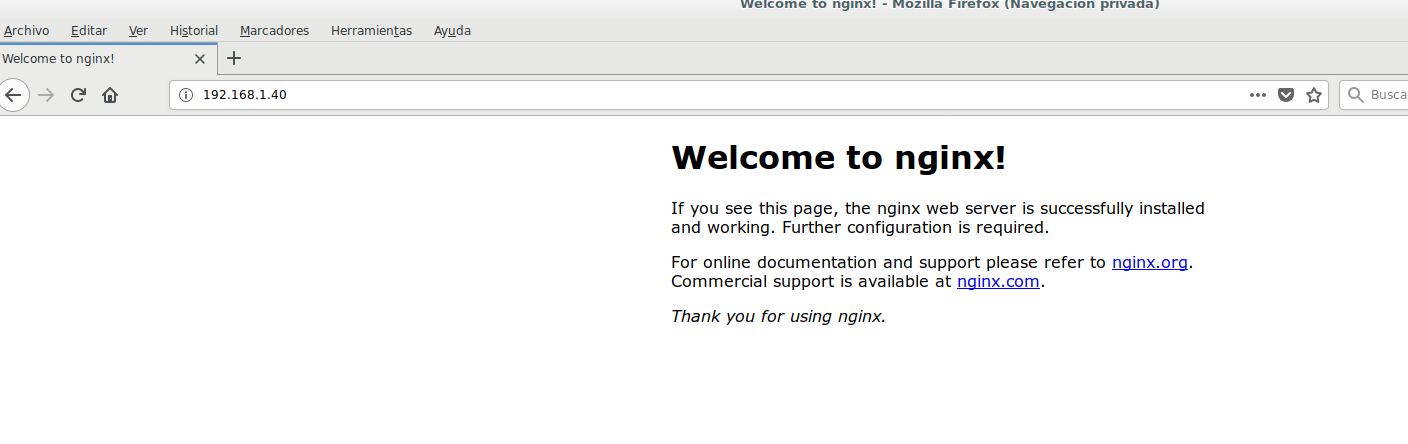

Accedemos mediante nuestro navegador

Nginx freeBSD modsecurity 02

:wq!
