Anteriormente ya hemos hablado de Nagios. Podéis ver el manual de la instalación AQUI
Pues ahora vamos a monitorizar una maquina Microsoft Windows, Para su monitorización vamos a utilizar el protocolo SNMP (Si no lo sabéis instalar en Windows AQUI tenemos un manual) y los chequeos van a ser de Memoria, CPU, Disco y PING.
Una vez ya tenemos instalado y configurado NAGIOS Y SNMP vamos a empezar a monitorizar.
Definir los comandos:
para definir tenemos que añadir los siguientes comandos al fichero commands.cfg, este fichero estará… dependiendo de la instalación que habríais realizado:
vi /etc/nagios3/commands.cfgY añadimos lo siguiente:
define command{
command_name check_wincpu_snmp
command_line /usr/bin/perl $USER1$/check_snmp_load.pl -H $HOSTADDRESS$ -C $ARG1$ -2 -T stand -w $ARG2$ -c $ARG3$
}
define command{
command_name check_winmem_snmp
command_line /usr/bin/perl $USER1$/check_disk_snmp.pl -H $HOSTADDRESS$ -s $ARG1$ -d phys -u $ARG2$ -w $ARG3$ -c $ARG4$
}
define command{
command_name check_disk_snmp
command_line /usr/bin/perl $USER1$/check_disk_snmp.pl -H $HOSTADDRESS$ -s $ARG1$ -d $ARG2$ -u $ARG3$ -w $ARG4$ -c $ARG5$
}
define command{
command_name check_ping
command_line $USER1$/docu $ARG3$ «$USER1$/check_ping -H $HOSTADDRESS$ -w $ARG1$ -c $ARG2$ -p 1»
}
Creamos las carpetas donde vamos a alojar los archivos de configuración
mkdir /etc/nagios3/etc/cfg/Windows/Accedemos al direcctorio
cd /etc/nagios3/etc/cfg/Windows/Creamos el fichero hosts.cfg con el siguiente contenido
#Definimos el grupo y los miembros que van a pertenecer a ese grupo
define hostgroup {
hostgroup_name grupo-windows
alias Microsoft Windows Servers
members cpd_192.168.1.112
}
#Definimos el chequeo de PING
#Ping to hosts
define service {
use windows-srv
hostgroup_name grupo-windows
service_description Windows CPD01 – ping
check_command check_ping!100.0,10%!500.0,20%
}
#Hosts Definition
#Definimos el host
define host {
use windows-srv
host_name cpd_192.168.1.112
alias CPD01
address 192.168.1.112
}Creamos el fichero templete.cfg en el cual vamos a definir los servicios.
define host {
name windows-srv
flap_detection_enabled 1
notification_period 24×7
notification_options d,u,r
retain_status_information 1
retain_nonstatus_information 1
contact_groups grupo-windows
# check_command check_command_blank
max_check_attempts 3
register 0
}
define service {
name windows-srv
check_period 24×7
flap_detection_enabled 1
notification_period 24×7
notification_options w,u,c,r
parallelize_check 1
retain_status_information 1
retain_nonstatus_information 1
max_check_attempts 3
normal_check_interval 3
retry_check_interval 1
contact_groups grupo-windows
register 0
}Definimos el archivo de contacto contacts.cfg
define contact{
contact_name grupo-windows
alias grupo-windows
service_notification_period 24×7
host_notification_period 24×7
service_notification_options w,u,c,r
host_notification_options d,r
service_notification_commands notify-service-by-email
host_notification_commands notify-host-by-email
email rokitoh@redorbita.com
}
define contactgroup {
contactgroup_name grupo-windows
alias Grupo de Windows
members grupo-windows
}Y por ultimo definimos los chequeos cpd01.cfg.
define service {
use windows-srv
host_name cpd_192.168.1.112
service_description Uso CPU
check_command check_wincpu_snmp!redorbita!80!90
}
define service {
use windows-srv
host_name cpd_192.168.1.112
service_description Uso MEM
check_command check_winmem_snmp!redorbita!MB!80%!90%
}
define service {
use windows-srv
host_name cpd_192.168.1.112
service_description Disco C:
check_command check_disk_snmp!redorbita!C!MB!1527!898
}Una vez creado el fichero tenemos que añadir la ruta de los mismos en el archivo nagios.cfg
vi /etc/nagios3/nagios.cfgAl final del archivo añadimos lo siguiente:
############## Monitorización Windows #############
cfg_file=/etc/nagios3/etc/cfg/Windows/templete.cfg
cfg_file=/etc/nagios3/etc/cfg/Windows/hosts.cfg
cfg_file=/etc/nagios3/etc/cfg/Windows/cpd01.cfg
cfg_file=/etc/nagios3/etc/cfg/Windows/contacts.cfgChequeamos para ver si no hay ningún error en los archivos de configuración
rokitoh@nagios:/etc/nagios3/etc/cfg/Windows# nagios3 -v /etc/nagios3/nagios.cfg
Nagios Core 3.2.1
Copyright (c) 2009-2010 Nagios Core Development Team and Community Contributors
Copyright (c) 1999-2009 Ethan Galstad
Last Modified: 03-09-2010
License: GPL
Website: http://www.nagios.org
Reading configuration data…
Read main config file okay…
Processing object config file ‘/etc/nagios3/commands.cfg’…
Processing object config directory ‘/usr/lib/nagios/plugins’…
Processing object config file ‘/usr/lib/nagios/plugins/mailq.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_storage.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ifstatus.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_load.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/breeze.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ftp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/apt.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/tcp_udp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ntp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/dummy.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/mrtg.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/rpc-nfs.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/users.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/games.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/real.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/pgsql.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_vrrp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/flexlm.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_win.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ssh.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ping.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/news.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/telnet.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/radius.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/fping.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/netware.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_cpfw.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_process.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/procs.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/ldap.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/mysql.cfg’…
Processing object config directory ‘/usr/lib/nagios/plugins/doc’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_int.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_mem.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/snmp_env.cfg’…
Processing object config file ‘/usr/lib/nagios/plugins/load.cfg’…
Processing object config directory ‘/etc/nagios3/conf.d’…
Processing object config file ‘/etc/nagios3/conf.d/timeperiods_nagios2.cfg’…
Processing object config file ‘/etc/nagios3/conf.d/contacts.cfg’…
Processing object config file ‘/etc/nagios3/conf.d/generic-host_nagios2.cfg’…
Processing object config file ‘/etc/nagios3/conf.d/generic-service_nagios2.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Windows/templete.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Windows/hosts.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Windows/cpd01.cfg’…
Processing object config file ‘/etc/nagios3/etc/cfg/Windows/contacts.cfg’…
Read object config files okay…
Running pre-flight check on configuration data…
Checking services…
Checked 4 services.
Checking hosts…
Checked 1 hosts.
Checking host groups…
Checked 1 host groups.
Checking service groups…
Checked 0 service groups.
Checking contacts…
Checked 2 contacts.
Checking contact groups…
Checked 2 contact groups.
Checking service escalations…
Checked 0 service escalations.
Checking service dependencies…
Checked 0 service dependencies.
Checking host escalations…
Checked 0 host escalations.
Checking host dependencies…
Checked 0 host dependencies.
Checking commands…
Checked 193 commands.
Checking time periods…
Checked 4 time periods.
Checking for circular paths between hosts…
Checking for circular host and service dependencies…
Checking global event handlers…
Checking obsessive compulsive processor commands…
Checking misc settings…
Total Warnings: 0
Total Errors: 0
Things look okay – No serious problems were detected during the pre-flight check
rokitoh@nagios:/etc/nagios3/etc/cfg/Windows#Y reiniciamos nagios
rokitoh@nagios:/etc/nagios3/etc/cfg/Windows# /etc/init.d/nagios3 reload
Reloading nagios3 monitoring daemon configuration files: nagios3.
rokitoh@nagios:/etc/nagios3/etc/cfg/Windows#

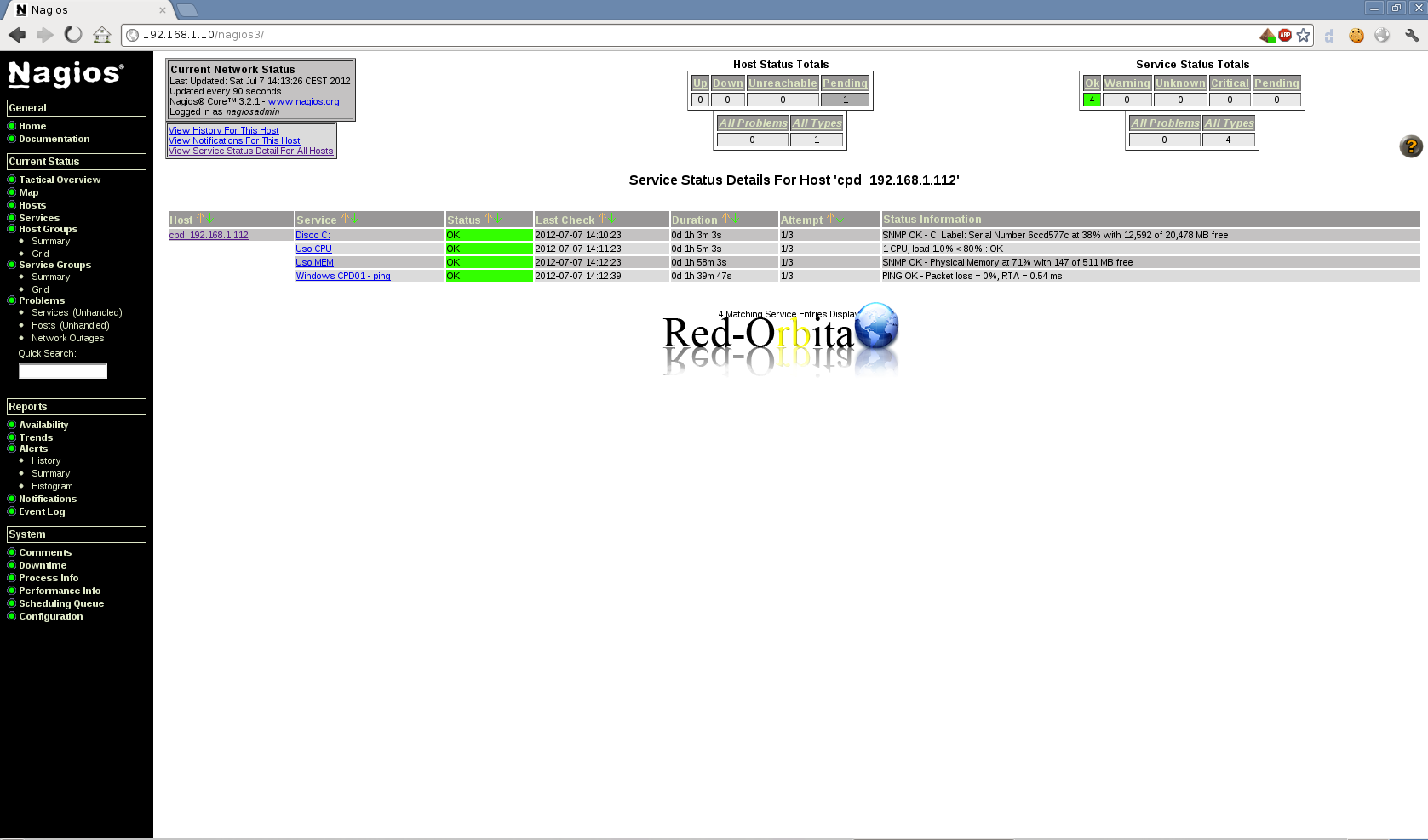

Abrimos nagios en nuestro navegador favorito y si todo a salido bien lo tendríamos que tener OK!
Un saludo, rokitoh!
